Fusheng - Industrial Air Compressor
- VA & TA Series (Standard Pressure)

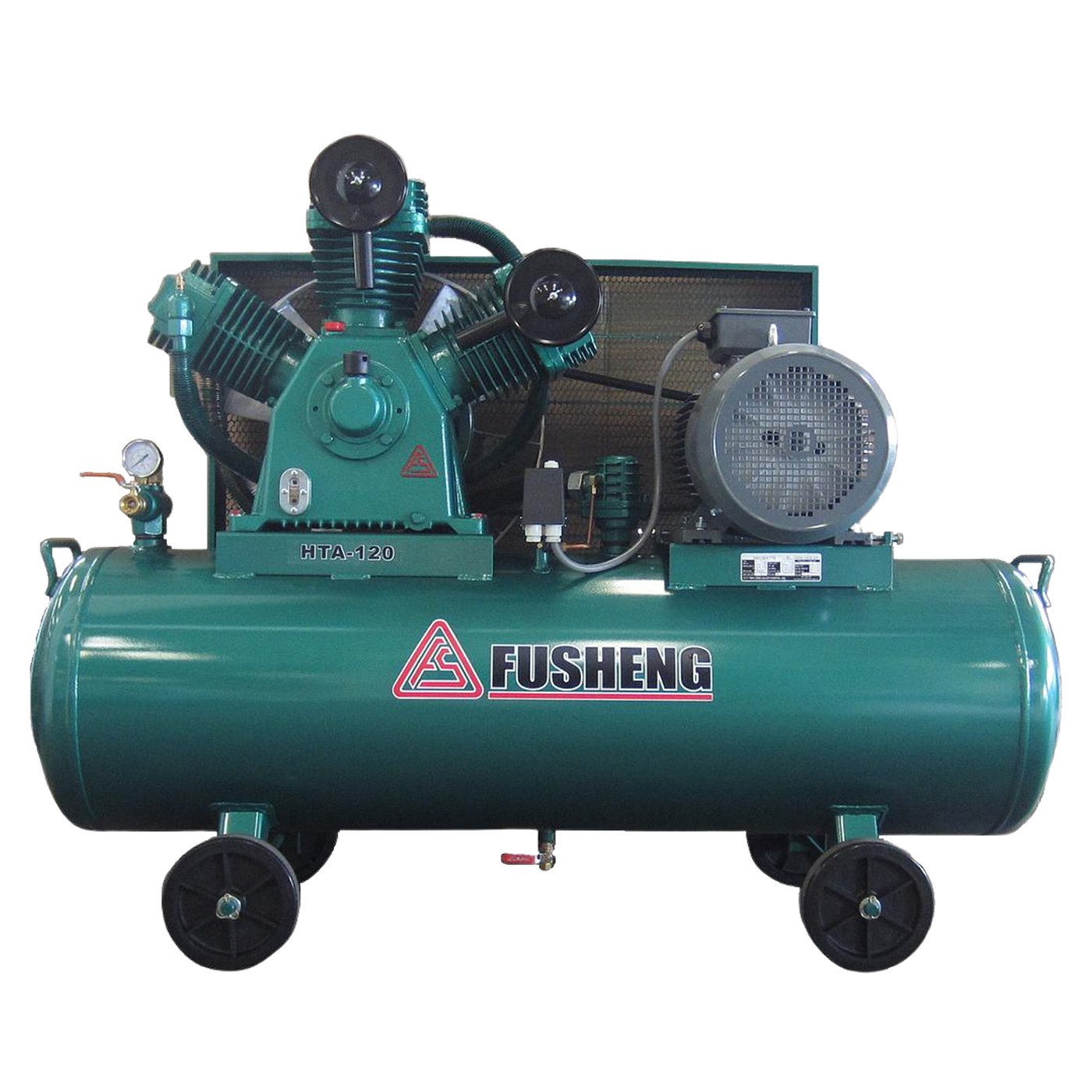

Suitable for workshops and manufacturing plants requiring stable air supply for daily operations. - HTA Series (High Pressure)
Built for demanding applications requiring higher pressure output and continuous operation.
Key Features
Robust pump design, high efficiency motor, reliable performance and long service life.
Fusheng Products
Standard Pressure
High Pressure
| MODEL | Phase | Motor HP | Motor Kw | Cylinder Bore (mm) | No. of Cylinders | Cylinder Stroke (mm) | Comp. RPM | Piston Displacement (L/min) | Working Pressure (kg/cm²) | Air Receiver Capacity Liter (L) | Air Receiver Max Pressure (kg/cm³) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VA-65 | 1P | 1 | 0.75 | 65 | 2 | 44 | 454 | 132 | 8 | 70 | 10 |
| VA-65 | 3P | 1 | 0.75 | 65 | 2 | 44 | 454 | 132 | 8 | 70 | 10 |
| TA-65 | 1P | 2 | 1.5 | 65 | 3 | 48 | 521 | 249 | 8 | 70 | 10 |
| VA-80 | 1P | 3 | 2.2 | 80 | 2 | 60 | 790 | 476 | 8 | 105 | 10 |
| VA-80 | 3P | 3 | 2.2 | 80 | 2 | 60 | 790 | 476 | 8 | 105 | 10 |
| TA-80 | 1P | 5 | 3.7 | 80 | 3 | 60 | 851 | 769 | 8 | 155 | 10 |
| TA-80 | 3P | 5 | 3.7 | 80 | 3 | 60 | 851 | 769 | 8 | 155 | 10 |
| VA-100 | 1P | 7.5 | 5.5 | 100 | 2 | 70 | 951 | 1045 | 8 | 245 | 10 |
| VA-100 | 3P | 7.5 | 5.5 | 100 | 2 | 70 | 951 | 1045 | 8 | 245 | 10 |
| TA-100 | 3P | 10 | 7.5 | 100 | 3 | 70 | 898 | 1481 | 8 | 304 | 10 |
| TA-120 | 3P | 15 | 11 | 120 | 3 | 80 | 805 | 2183 | 8 | 304 | 10 |
| TA-125 | 3P | 20 | 15 | 125 | 3 | 90 | 860 | 2857 | 8 | 500 | 10 |
| MODEL | Phase | Motor HP | Motor Kw | Cylinder Bore (mm) | No. of Cylinders | Cylinder Stroke (mm) | Comp. RPM | Piston Displacement (L/min) | Working Pressure (kg/cm²) | Air Receiver Capacity Liter (L) | Air Receiver Max Pressure (kg/cm³) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HTA-65H | 1PH | 3 | 2.2 | 65 | 2 | 48 | 916 | 292 | 12 | 105 | 13.5 |
| 51 | 1 | ||||||||||
| HTA-65H | 3PH | 3 | 2.2 | 65 | 2 | 48 | 916 | 292 | 12 | 105 | 13.5 |
| 51 | 1 | ||||||||||
| HTA-65H-P | 3PH | 4.9 | 3.7 | 65 | 2 | 48 | 1085 | 345 | 12 | 245 | 13.5 |
| 51 | 1 | ||||||||||
| HTA-80 | 1PH | 5 | 3.7 | 80 | 2 | 60 | 954 | 575 | 12 | 155 | 13.5 |
| 65 | 1 | ||||||||||
| HTA-80 | 3PH | 5 | 3.7 | 80 | 2 | 60 | 954 | 575 | 12 | 155 | 13.5 |
| 65 | 1 | ||||||||||
| HTA-100 | 1PH | 7.5 | 5.5 | 100 | 2 | 70 | 739 | 812 | 12 | 245 | 13.5 |
| 80 | 1 | ||||||||||
| HTA-100 | 3PH | 7.5 | 5.5 | 100 | 2 | 70 | 739 | 812 | 12 | 245 | 13.5 |
| 80 | 1 | ||||||||||
| HTA-100H | 3PH | 10 | 7.5 | 100 | 2 | 70 | 888 | 976 | 12 | 304 | 13.5 |
| 80 | 1 | ||||||||||
| HTA-120 | 3PH | 15 | 11 | 120 | 2 | 80 | 805 | 1455 | 12 | 304 | 13.5 |
| 1000 | 1 |
